Ile / Awọn ọja / Awọn skru / Ara ẹni ti ara / Akoonu

Awọn ọja

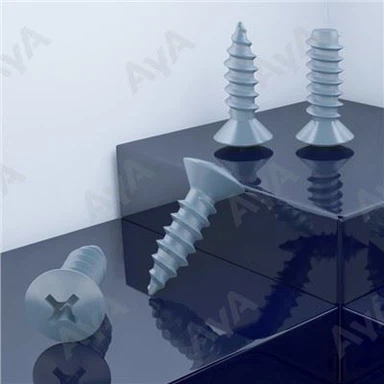

Awọ ategun dudu ti o gbe awọn skru counterser

Awọ ategun dudu ti o gbe awọn skru counterser

Boṣewa: asme b 18.6.4
Iru okun: Ara - Okun tẹ
Eru: ohun elo ategun dudu
Tun ti wa ni orukọ: Dide ori dide
Ohun elo: Irin alagbara
Fọọmu / Apẹrẹ ti sample: 0 #, 1 #, 2 #, 4 #, 8 #, 8,5 / 4,5
Pari: Pẹtẹlẹ, awọ funfun, shin pl pallivated (ZFSL), jiomet, jije
Yiya boṣewa: ISO 1483, Asme 7973, AsME B 18.6.6.5m, JIS B 1115 (O)
Iru ori: ori a counters ni ori / ofali ori
Oriṣi awakọ: Iho inu inu
Moq: 1000kgs
Akoko Irisi: 30 si 60 ọjọ

Fi ibere ranṣẹ

Ifihan ọja

Aya awọn iyara (Oun jẹ ọkan ninu awọn olupese ti o ni iriri julọ ati awọn olupese ti awọn skru oju dudu ti o gbe soke ni China. Jọwọ lero free lati ra ohun elo awọ malu ti o ni didara didara didara awọn skru ti a ṣe ni China nibi lati ile-iṣẹ wa. Fun ijumọsọrọ idiyele, kan si wa.

Black Oxide Raised Countersunk Screws-AYA Fasteners-AYA

Gẹgẹbi olupese agbaye ti awọn solusan ti o ni iyara, ilana iṣẹ iṣẹ Aya tun sunmọ sunmọ awọn alabara bi awọn ọja Aya. Lati ṣe apejuwe awọn iwulo lati tẹle {{{{{{{{{► Awọn iṣẹ, Aya yoo ni kiakia ati ni kiakia ati ko ipa si awọn iṣoro iranlọwọ lati yanju ibakcdun.

Apejuwe Ọja

Orukọ ọja	Awọ ategun dudu ti o gbe awọn skru counterser
Tun darukọ	Dide ni dabaru
Oun elo	Irin alagbara
Idiwọn	Asme b 18.6.4
Fọọmu / Apẹrẹ ti sample	Tẹ AB
Iwọn opin	0#,1#,2#,3#,4#,5#,6#,7#,8#,10#,12#,1/4,5/16
Pari	Pẹtẹlẹ, awọ funfun, s {, nipọn {{0} Faili (zfshl, jiamet, cadmbl caltroplate, cadmium pctilel
Idiwọn miiran	Rin 7983, Asme B 18.6.3, ASME B 18.6.4, ASME B 18.6.5M, JES B 1122 (O)
Iru ori	Olori ti a gbe dide / Ofali ori
Oriṣi awakọ	Iho inu inu
Iru okun	Ti ara -}}}}}}}}}} fa itẹwe dabaru

Tabili nọmba

Black Oxide Raised Countersunk Screws-AYA Fasteners-2D

Iwọn ila opin yiyan d		0#	1#	2#	3#	4#	5#	6#	7#	8#	10#	12#	1/4	5/16
d	Iwọn yiyan	0.0600	0.0730	0.0860	0.0990	0.1120	0.1250	0.1380	0.1510	0.1640	0.1900	0.2160	0.2500	0.3125
L	min	3/16	3/16	3/16	7/32	1/4	1/4	5/16	3/8	7/16	1/2	9/16	5/8	13/16
dk	max	0.112	0.137	0.162	0.187	0.212	0.237	0.262	0.287	0.312	0.362	0.412	0.477	0.597
dk	min	0.096	0.120	0.144	0.167	0.191	0.215	0.238	0.262	0.285	0.333	0.380	0.442	0.556
k	Ref.	0.035	0.043	0.051	0.059	0.067	0.075	0.083	0.091	0.100	0.116	0.132	0.153	0.191
f	Ref.	0.021	0.025	0.029	0.033	0.037	0.041	0.045	0.049	0.052	0.060	0.068	0.079	0.099
h	Ref.	0.056	0.068	0.080	0.092	0.104	0.116	0.128	0.140	0.152	0.176	0.200	0.232	0.290
n	max	0.023	0.026	0.031	0.035	0.039	0.043	0.048	0.048	0.054	0.060	0.067	0.075	0.084
n	min	0.016	0.019	0.023	0.027	0.031	0.035	0.039	0.039	0.045	0.050	0.056	0.064	0.072
t	max	0.030	0.038	0.045	0.052	0.059	0.067	0.074	0.081	0.088	0.103	0.117	0.136	0.171
t	min	0.025	0.031	0.037	0.043	0.049	0.055	0.060	0.066	0.072	0.084	0.096	0.112	0.141

Awọn alaye Ọja

Black Oxide Raised Countersunk Screws-AYA Fasteners-detail

Awọn anfani Ọja

Black Oxide Raised Countersunk Screws-AYA Fasteners-advanatage

Awọn anfani ti awọn ohun elo ategun dudu ti o gbe soke

1. Gb -} Awọn ohun elo didara pẹlu gbigbọn awọ malu mu agbara rẹ pọ si.

2. Aṣọ elo akẹrẹ dudu jẹ ki o gaju o lagbara ati pe o to gun ju awọn ohun elo miiran lọ.

3. Awọn skru wọnyi lo lopolopo lati yara awọn igbo.

4. Alailẹgbẹ pese ohun elo afikun pẹlu oju-ilẹ yii ti rọ lori.

5. Awọn agba ti a gbe dide pẹlu agbegbe ibaamu ti o jinlẹ jẹ ki o rọrun lati mu ati aito.

6. O nilo agbara ti o kere lati mu awọn skru wọnyi nitori awọn ikun didasilẹ ati sample Pointy, eyiti o yarayara da ọna wọn si dada.

7. Aya ni agbara lati pese ojutu imudara ti ayaworan

8 Lọwọlọwọ, Aya n ṣiṣẹ orisirisi awọn ẹkunran bii Guteast oorun Asia, North America, South America, ati Yuroopu pẹlu diẹ sii ju awọn iru awọn ọja lọ.

Ayewo didara

Quality Check-AYA Fasteners

Apoti & ikojọpọ ikojọpọ

Packing-AYA Fasteners

Awọn oju iṣẹlẹ lilo

Usage-AYA Fasteners

Kini idi ti Yan Aya?

AYA provides exclusive services to 1000+ members from all over the world every year, with a unique chain service solution system, you only need to click the mouse to get exclusive fastening solution and enjoy door-to-door services.
